B. Controlling 2 Trains

S Gauge, 2-Track Automatic Switching Block
s *m*e*n*u | 242
* Project 242 *

 Video #659
  2 trains
  Video #660
   3 trains

  A Introduction
  B 2-Trains
  C 3-Trains

(9L13)

-
[an error occurred while processing this directive]



Comments

This 'Page B' describes operation of the unit as a 2-track S gauge "Automatic Passing Siding" for controlling 2 trains.

The following 'Page C' describes addition of a relay, to control 3 trains with the same track unit.

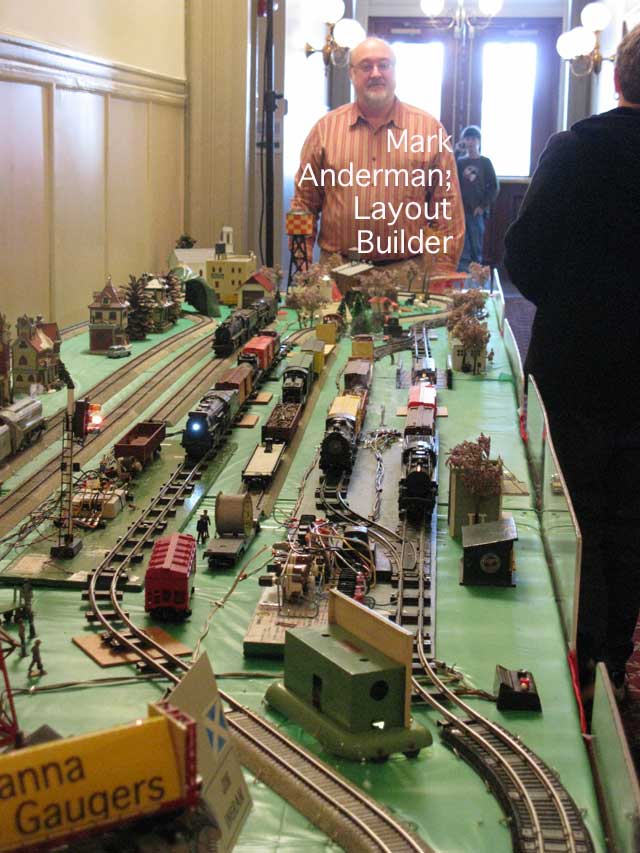

Photo 1: Two-track S-gauge Automatic Passing Siding shown at right
Note RR-Concepts SIM (Switching Interface Module) -- which will be mounted in the lower-left ocrner of the control unit -- has not yet been added.

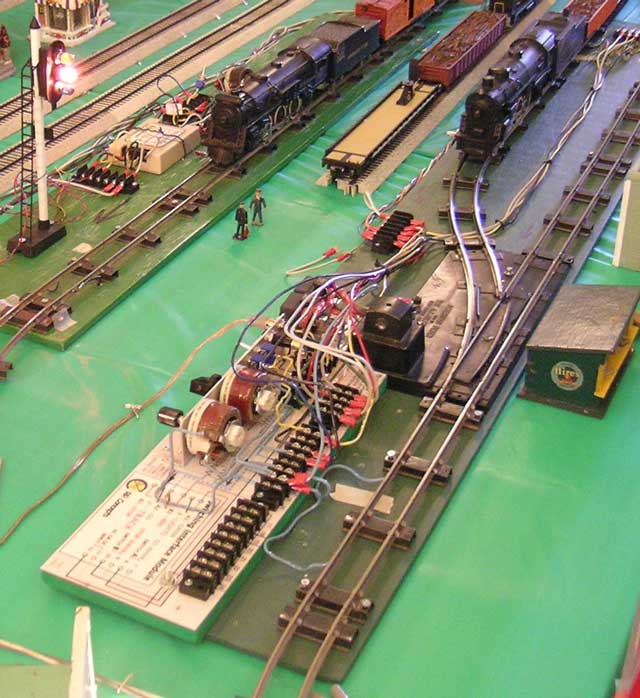

Photo 2: S-gauge Automatic Passing Siding shown at right.
Single-track Automatic Block with RR-Concepts SIM (Switching Interface Module) shown at left.
The single-track Automatic Block is described on the "Project 141" web page..
(photo by Doris Anderman)

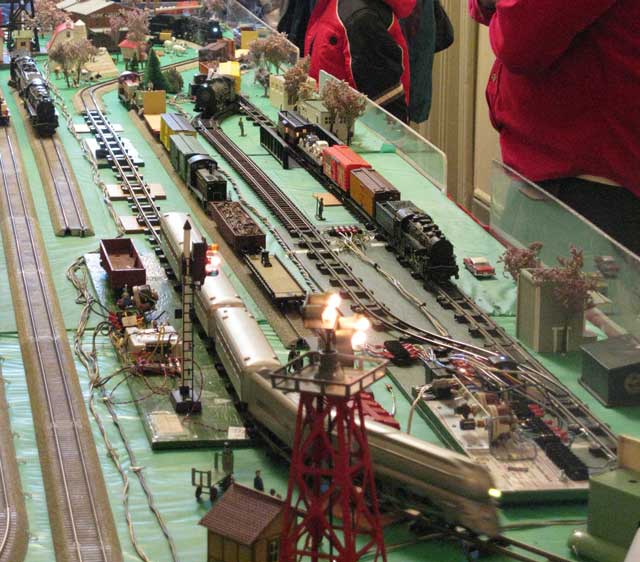

Photo 3: Control units, viewed from a different angle
(photo by Doris Anderman)


wiring2

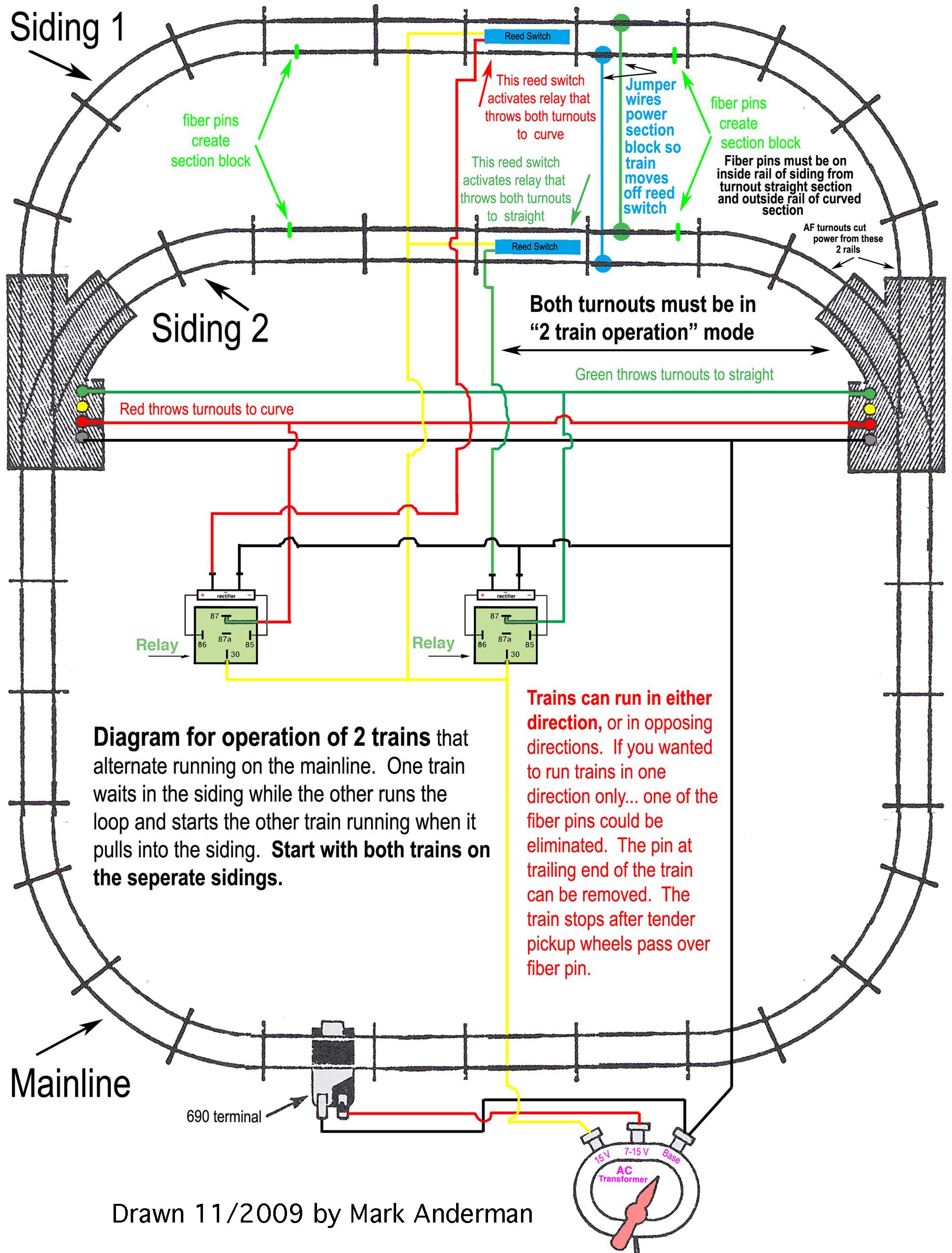

Figure 4 - Wiring diagram by Mark Anderman, for a 2-train automatic passing siding.
[full size drawing]
This drawing is similar to the unit built in Photos 1, 2, & 3 above, but is simpler. It does not have the rheostats nor a "slowdown" section,
nor does it have the "block" control to operate the 3rd train.  Mark also has it designed so that it can be operated in either direction.
