B, Drawings Model 106 (aka 146) - Single Track Block
* Model 106 * A Introduction B Dwgs-Const < C Const Steps D Operation E About PDFs * PDF Directory * 10-page pdf build instructions (12F17..) - [an error occurred while processing this directive]	Drawings shown below on this page: Drawing #3 - Schematic Drawing #4 - Track Unit Drawing #7 - Parts List Drawing #9 - Template

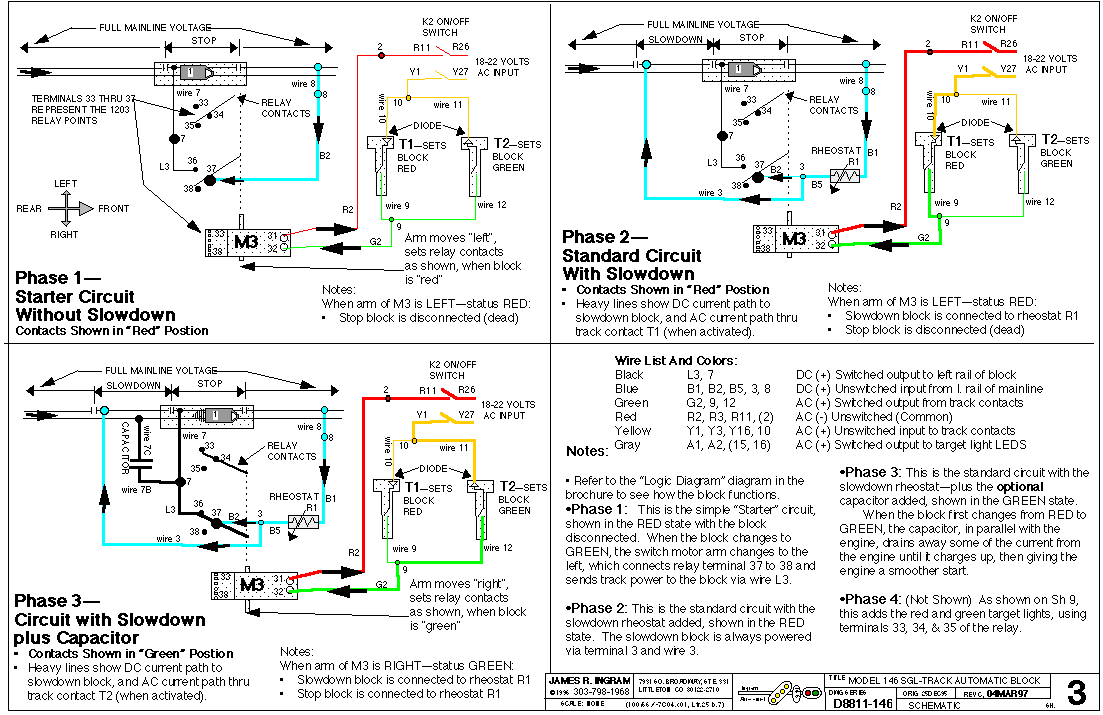

Drawing #3 - Schematic

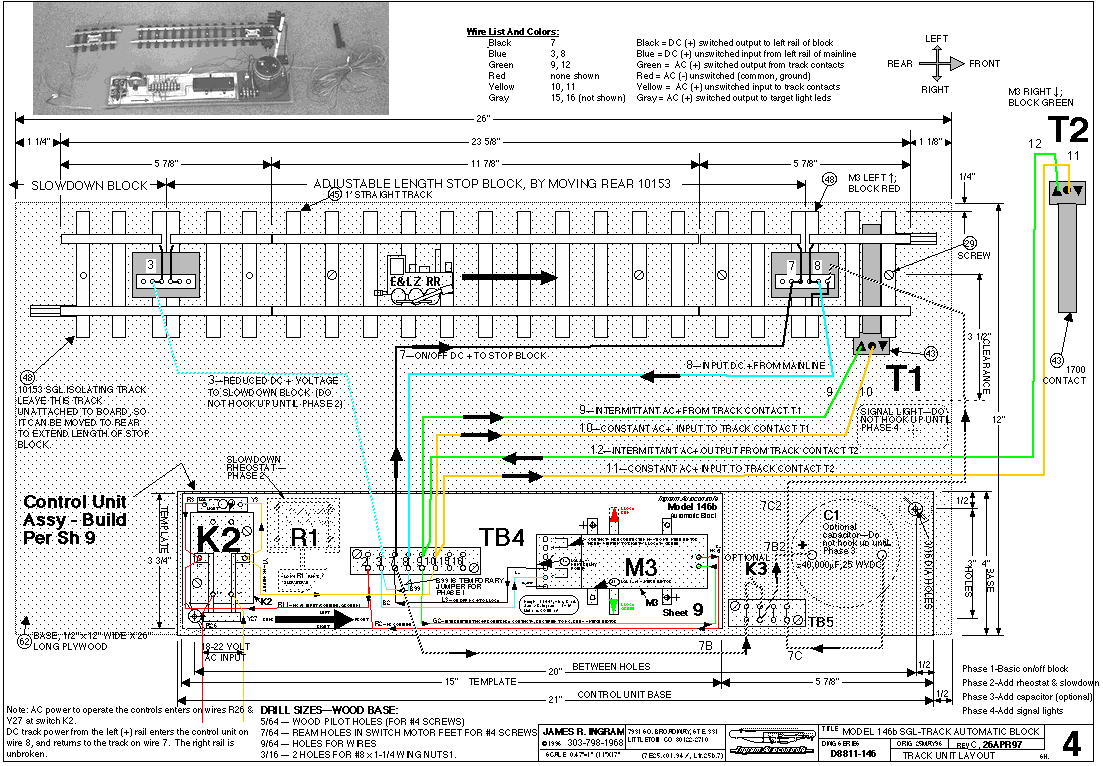

Drawing #4 - Track Unit

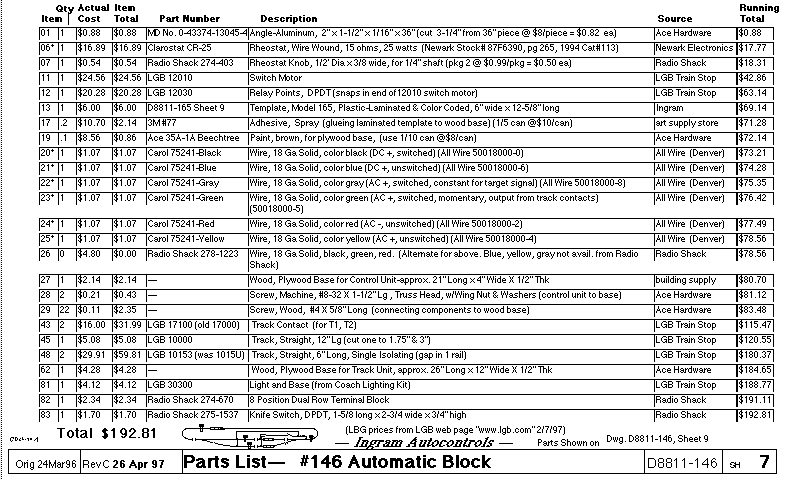

Drawing #7 - Parts List

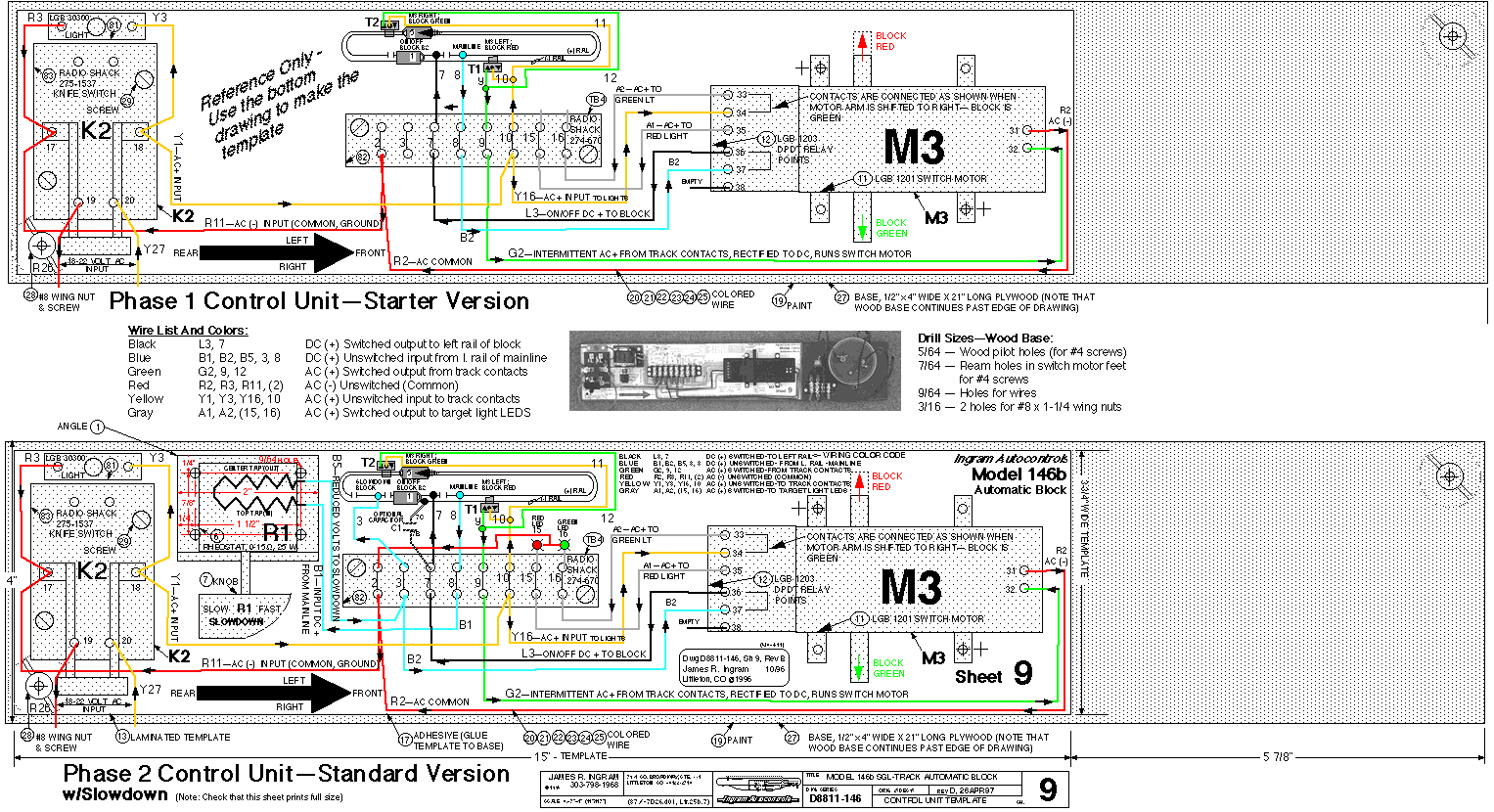

Drawing #9 - Template

This drawing is colored, and plastic-laminated, so you can cut it out, glue it to a wood base,
and attach all the parts and wires directly on top of their outlines.
