List
of Drawings, shown BELOW on this page:
-
-

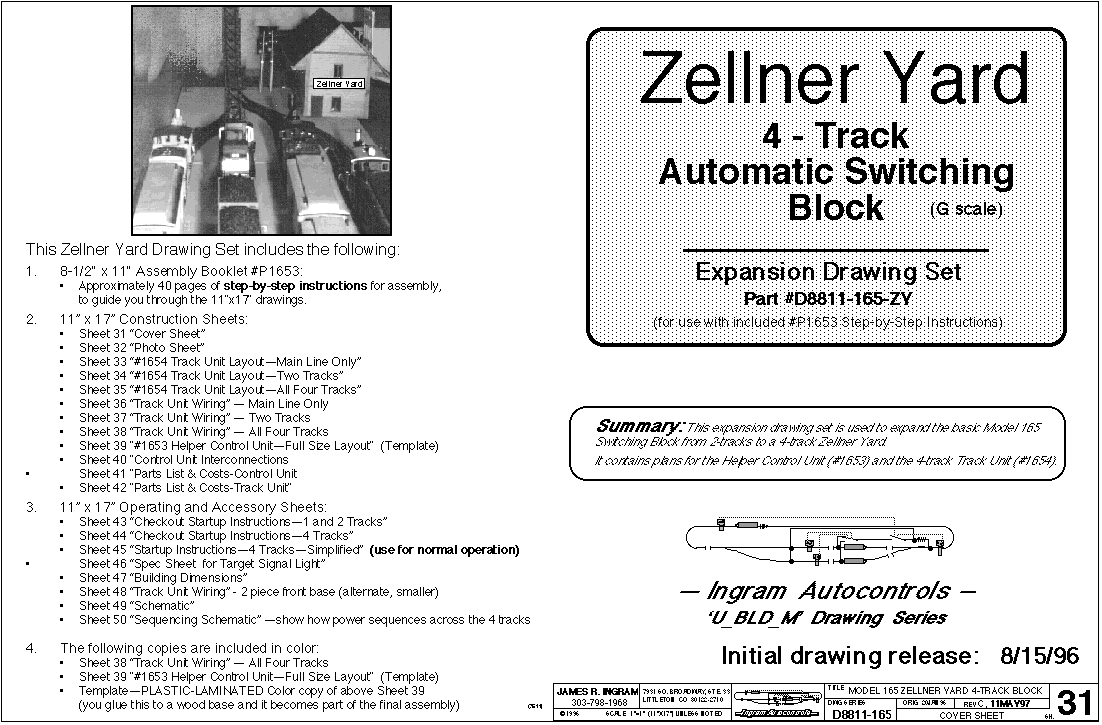

Drawing
#31
- Cover Sheet
-
Drawing

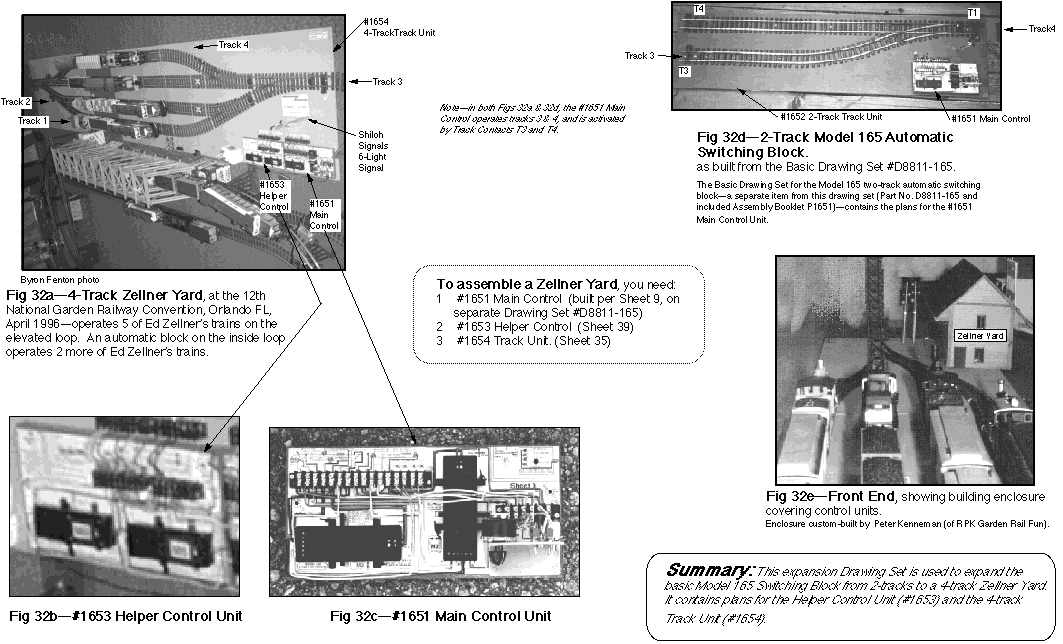

#32
- Photo Sheet
-
Drawing

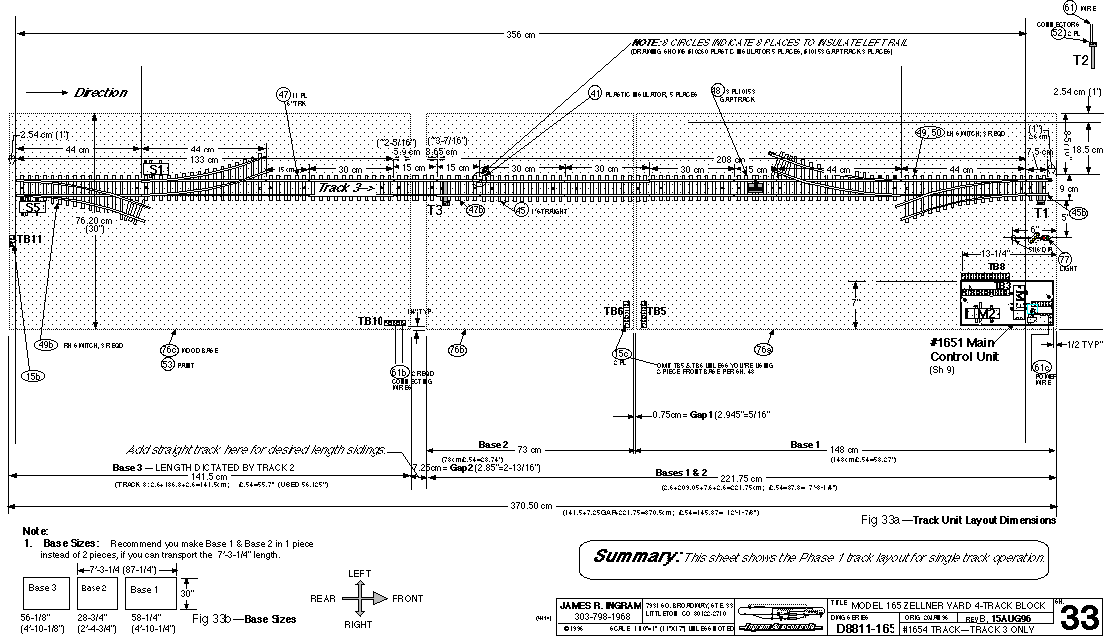

#33
- Track Unit, Single Track
-

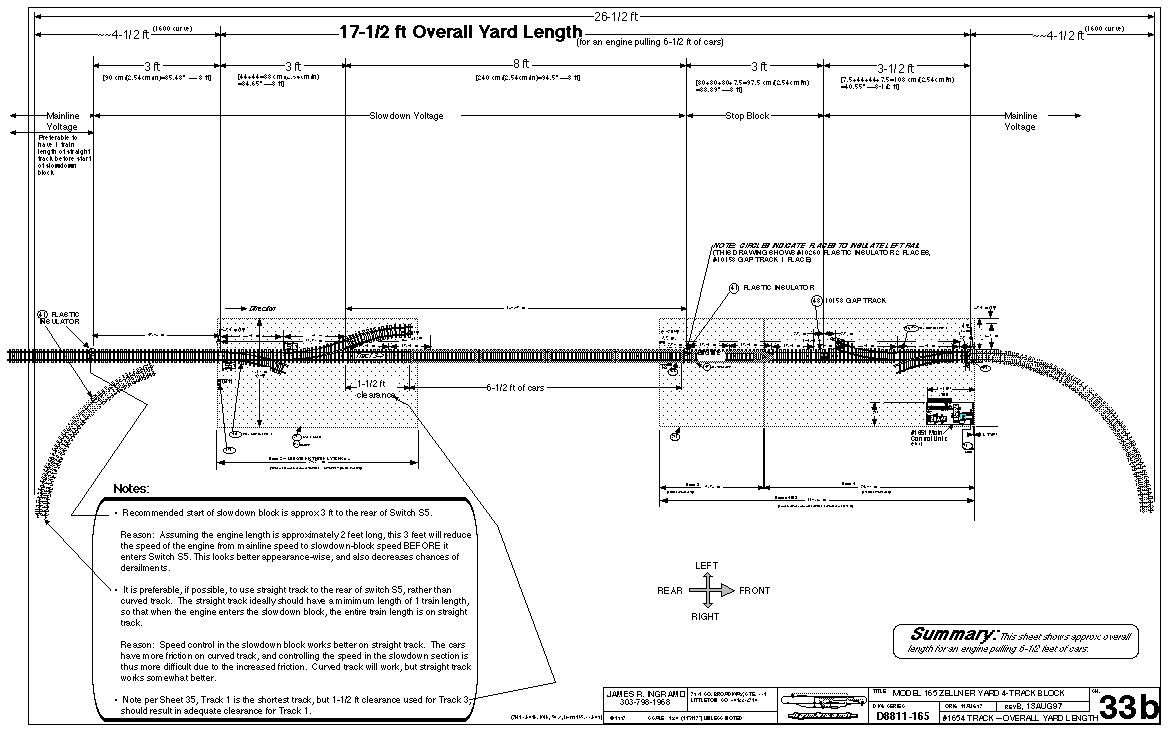

Drawing
#33b
- Track Unit - showing Yard Length
(6-1/2 ft of cars)
-

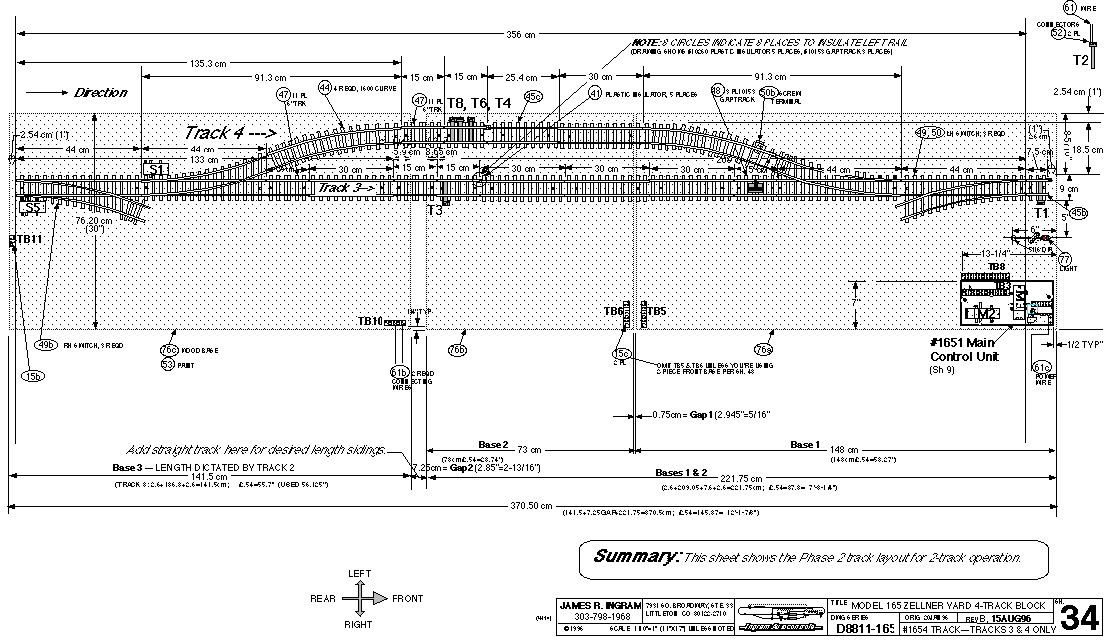

Drawing#
34
- Track Unit, Two Tracks
-
Drawing
#35
- Track Unit, Four Tracks
-

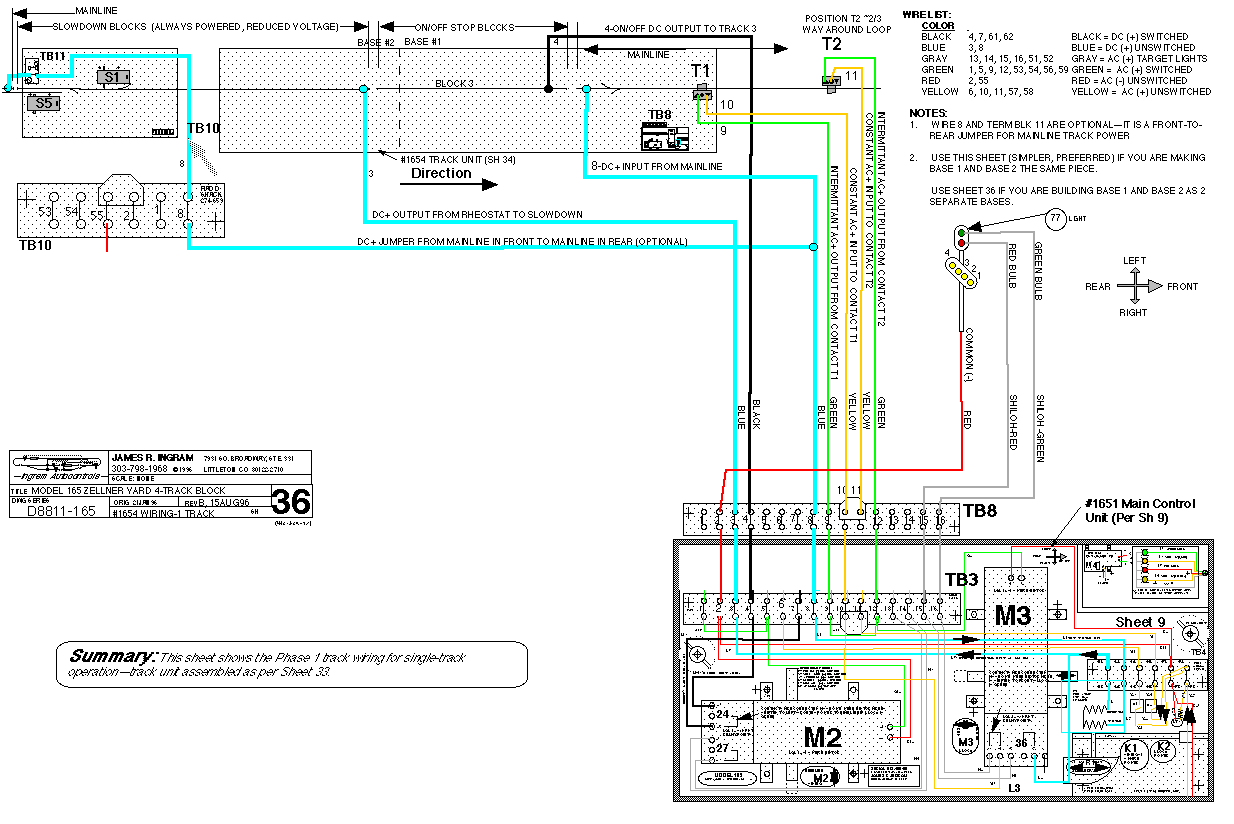

Drawing
#36
- Track Unit Wiring, Single Track
-

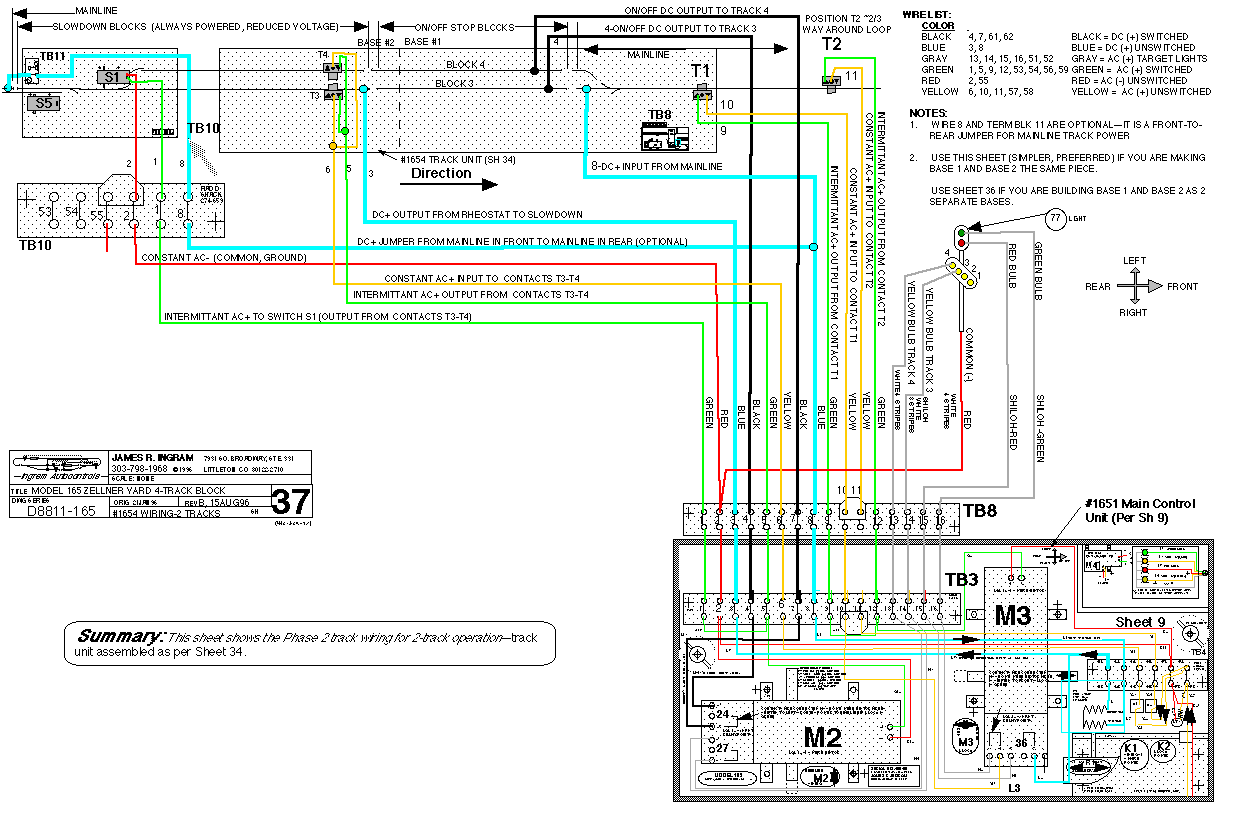

Drawing
#37
- Track Unit Wiring,Two Tracks
-
Drawing
#38
- Track Unit Wiring, Four Tracks
-
Drawing
#39
- Template For Helper Control Unit
-

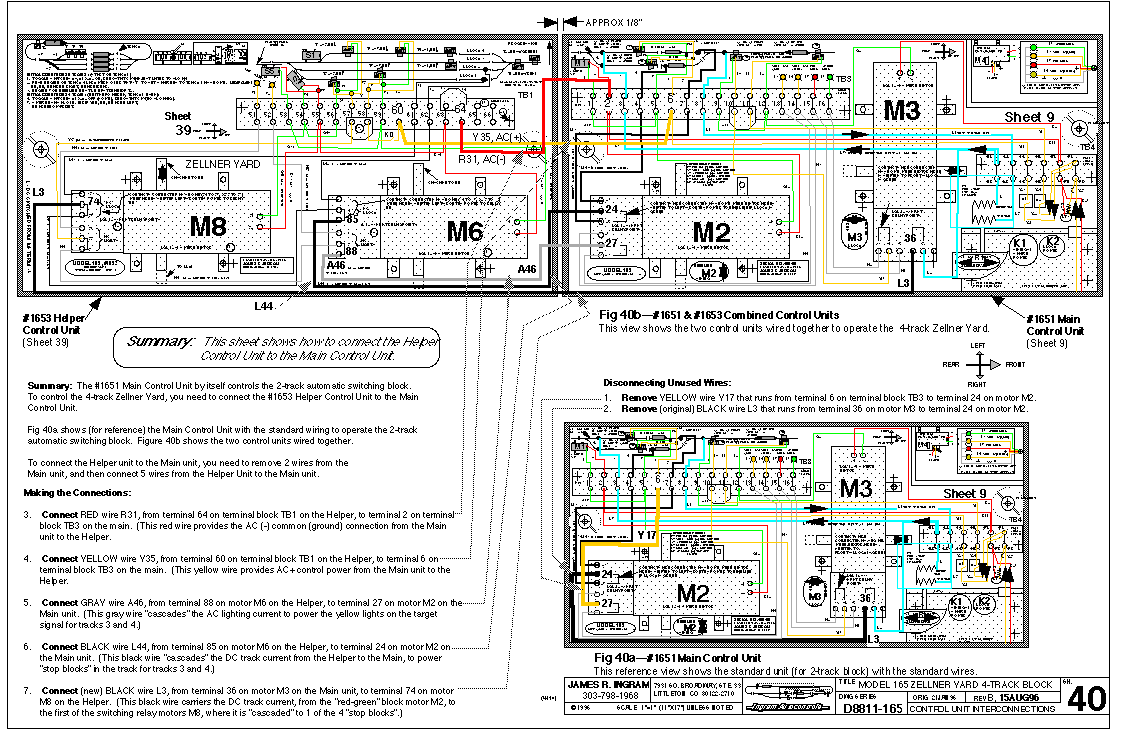

Drawing
# 40 - Control Unit Interconnections
-
Drawing
#41 - Parts List & Costs - Control Unit
-
Drawing
#42 - Parts List & Costs - Track Unit
-
Drawing #48, Track
Wiring - special 2 piece front base (new
window)
-
-
-
|
What This
Section
Shows You
- This
section shows
you all the "contruction" drawings.
- The
previous
Section D2 shows you just the KEY
drawings.
- The next
Section
D4 shows you all the "operating" drawings,
plus some other reference
drawings.
Building In
Phases
The
track
unit drawings (Sheets 33, 34, & 35) and
tracking wiring drawings
(Sheets 36, 37, & 38) show 3 "phases" of
construction,
single-track, double-track, and 4-track.
This allows you to build the
system in progressive steps, starting with
just 1 track, then progress
to 2 tracks, then progress to 4 tracks.
Other Comments
- The first
drawing,
Sheet 31, lists these drawings by number.
- You use the
#1651
Main Control (Sheet 09, part of Drawing
Set Item 4) from the Two-Track
Block Drawings, as the Main Control Unit
for the 4-track Zellner Yard.
May 2006 Note
- When
To Use The Model 402 Template
Use
the Model 402 template (added May 2006)
described in Section
C1,
if
you want to build a 4-track control unit
from "scratch", rather than
expanding a 2-track unit.
The Model
402 Yard
uses most of the drawings from the earlier
1654 design (Sections D1
thru D4), but there are 3 new drawings
created for the one-piece
control unit: Cover Sheet, template, and
parts list.
|
|
