List of Drawings, shown BELOW on this page: Drawing #43 - Checkout Steps for 1 & 2 Tracks Drawing #44 - Checkout Steps for 4 Tracks   Drawing #45 - Startup Instructions   Drawing #46 - Signal Light Drawing #47 - Enclosure Dimensions   Drawing #49 - Schematic Drawing #50 - Sequencing Schematic   What This Section Shows You This section shows you all the "operating" drawings, plus some other reference drawings. The previous Section D2 shows you just the KEY drawings. The previous Section D3 shows you all the "contruction" drawings.

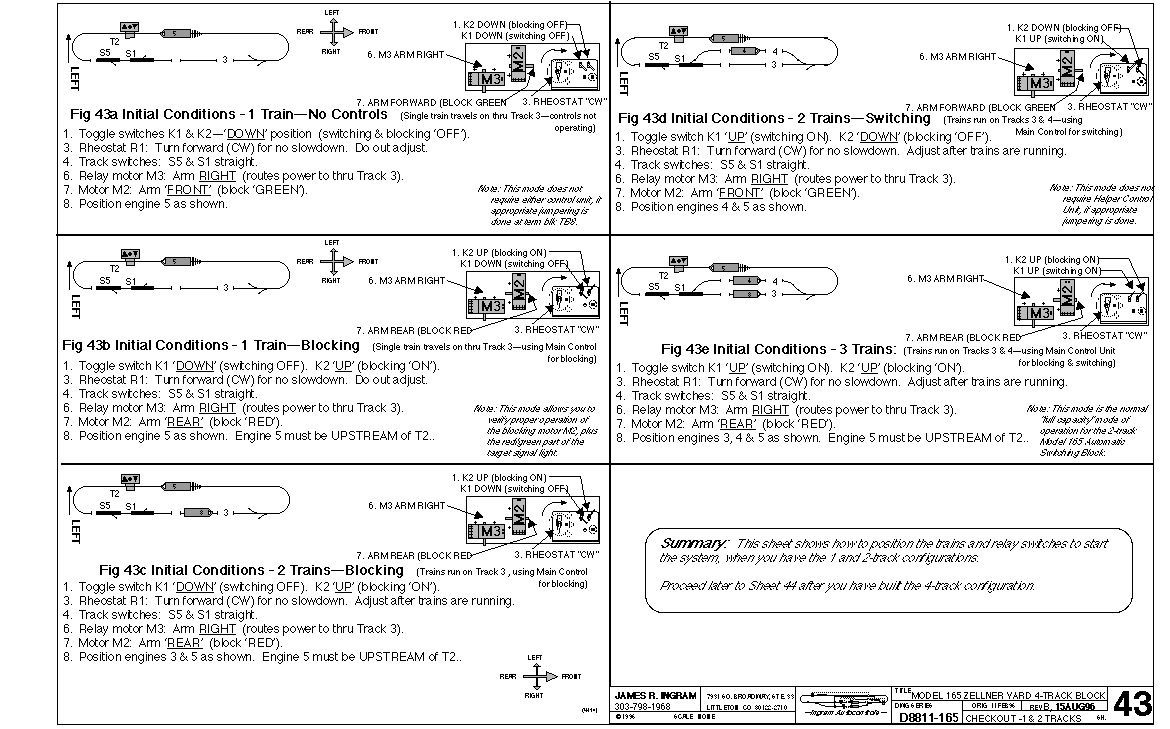

Drawing #43 - Checkout Steps for 1 & 2 Tracks

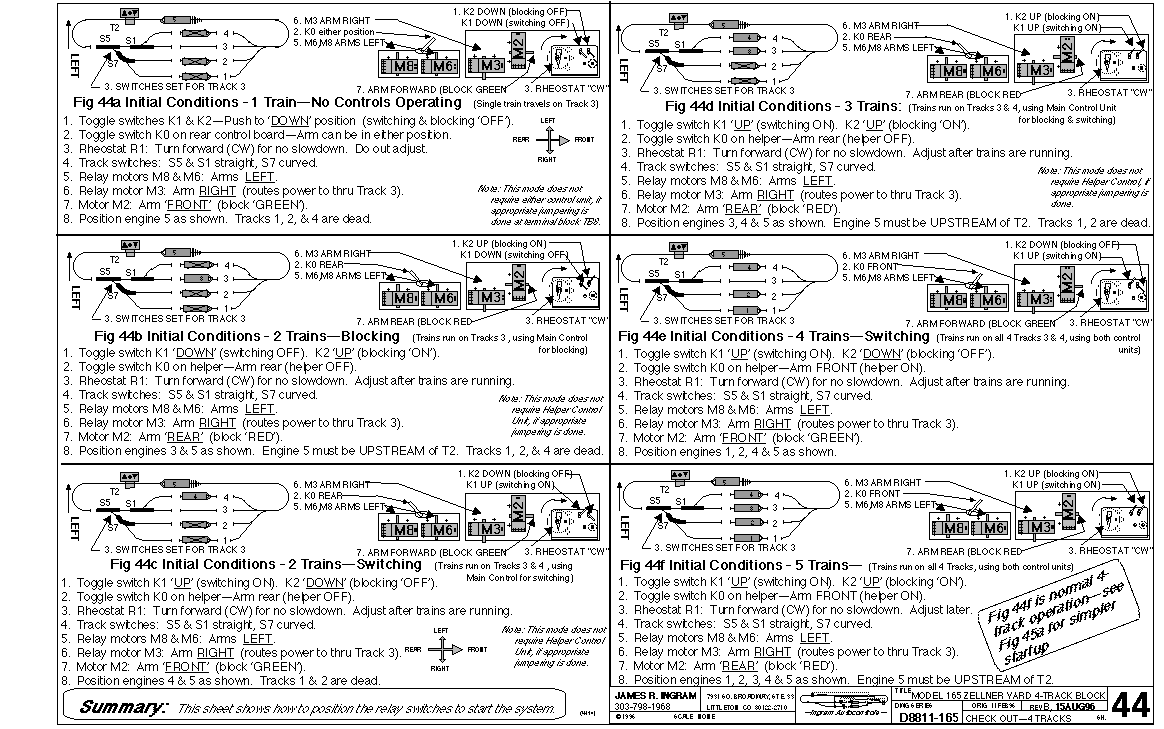

Drawing #44 - Checkout Steps for 4 Tracks

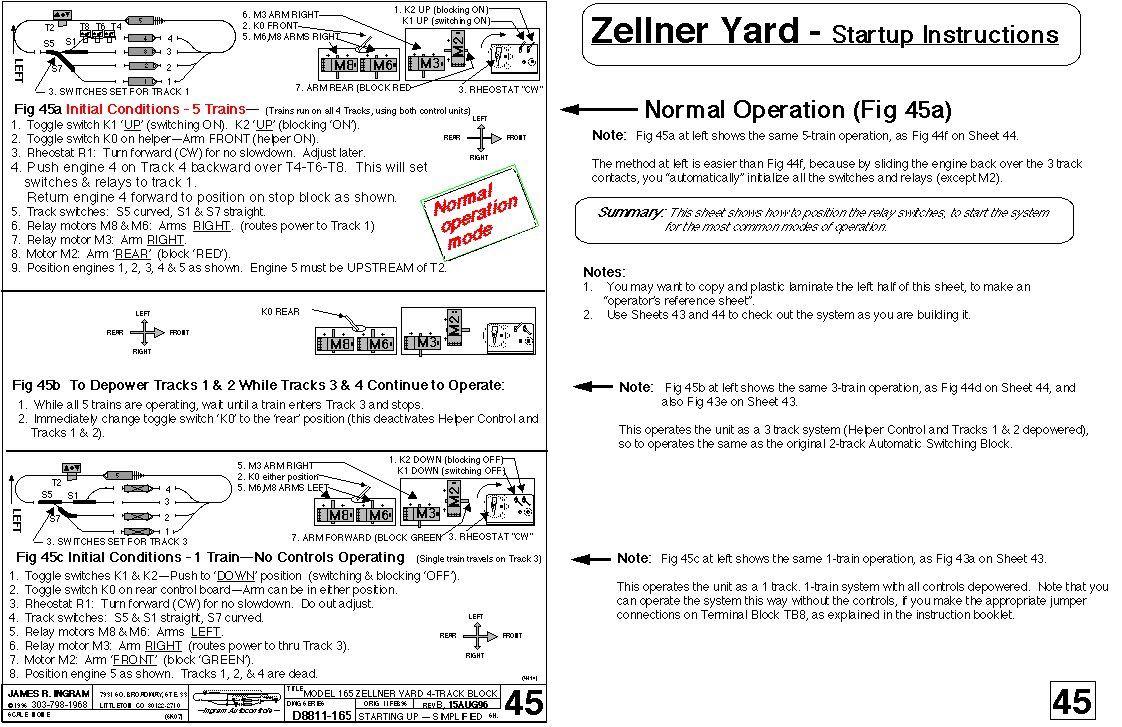

Drawing #45 - Startup Instructions

Drawing #46 - Signal Light

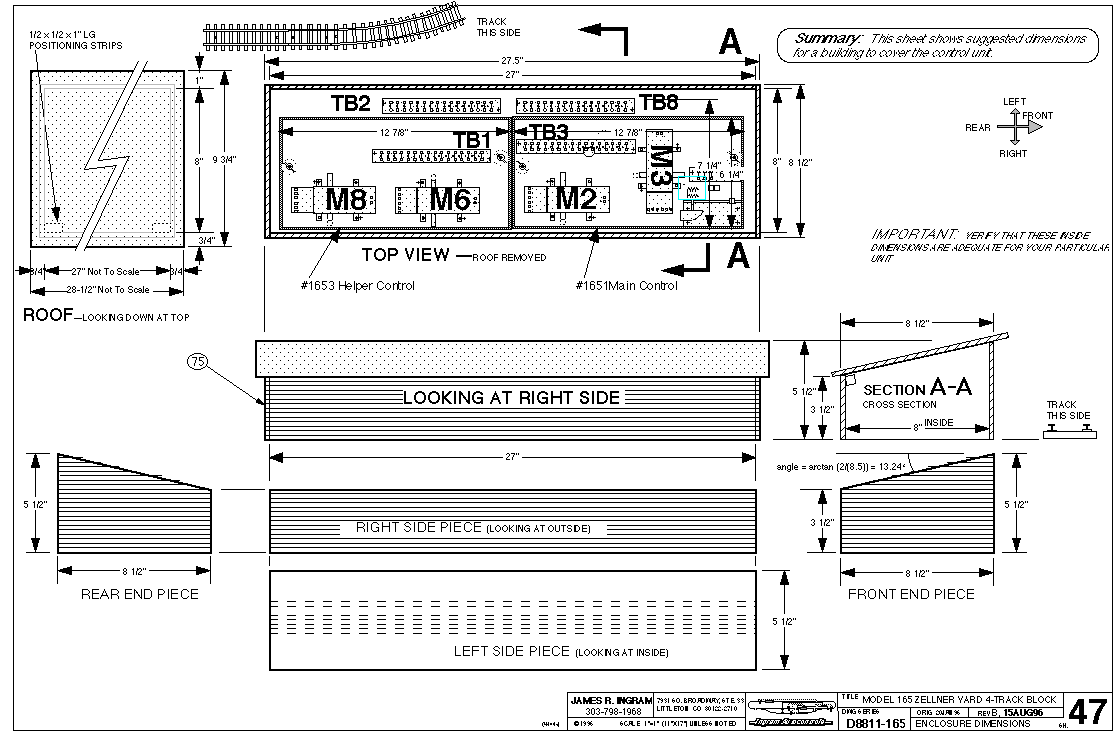

Drawing #47 - Enclosure Dimensions

 Drawing #49 - Schematic

 Drawing #50 - Sequencing Schematic
