Drawings shown below on this page: Drawing #4 - Track Unit Drawing #5 - Track Wiring Drawing #7 - Parts List & Costs for Control Unit  Drawing #8 - Parts List & Costs for Track Unit  Drawing #9 - Template For Control Unit Drawing #21 - Signal Light For Reference: Previous Model 164 Control Unit (new window)   What This Section Shows You This section shows you the "KEY" (most important) drawings for the Two-Track Automatic Yard, as supplied in drawing set Item 4. The next 2 sections shows you ALL the drawings that have been developed for this system.

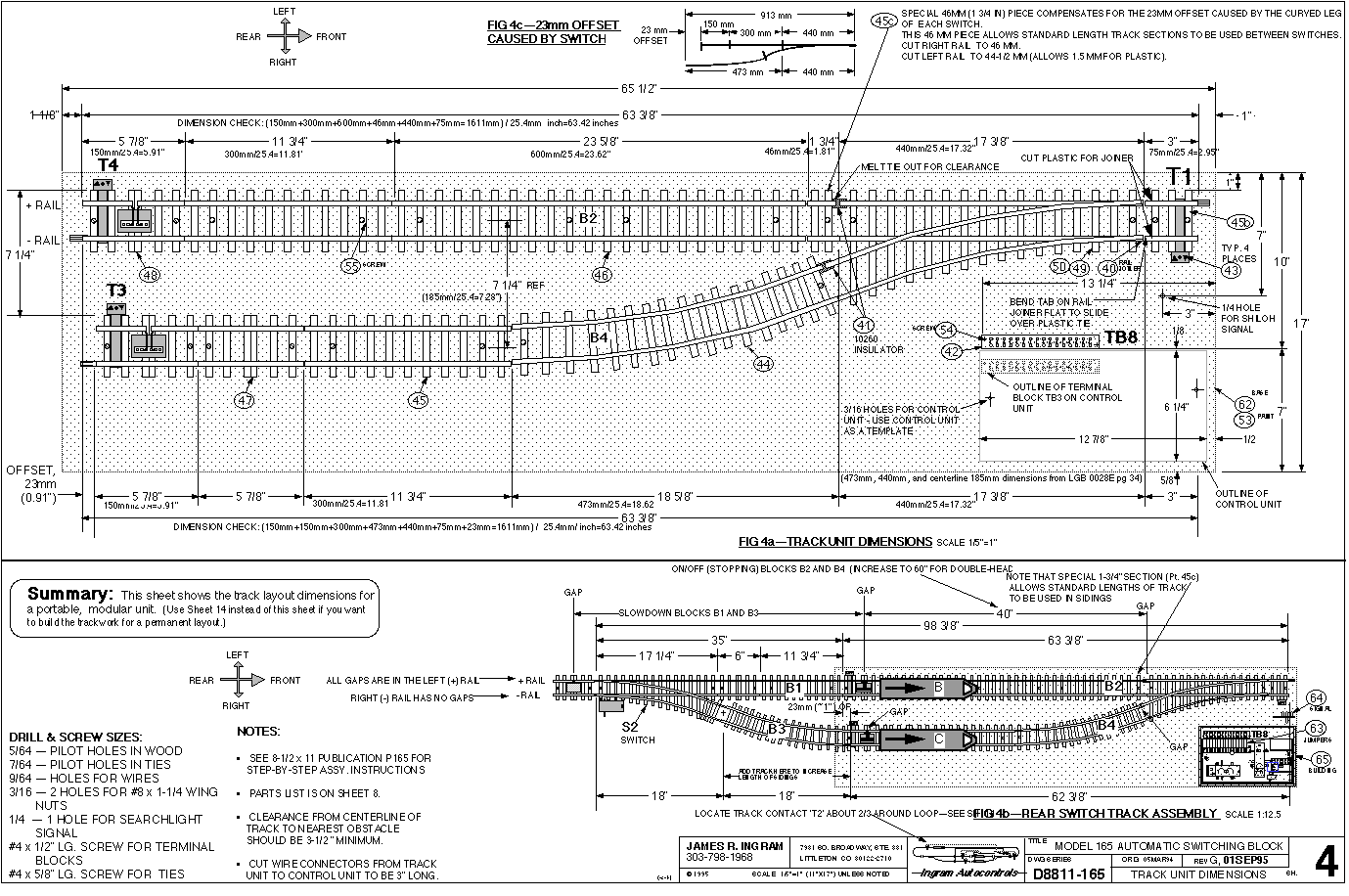

Drawing #4 - Track Unit

Photo of Two-Track Unit

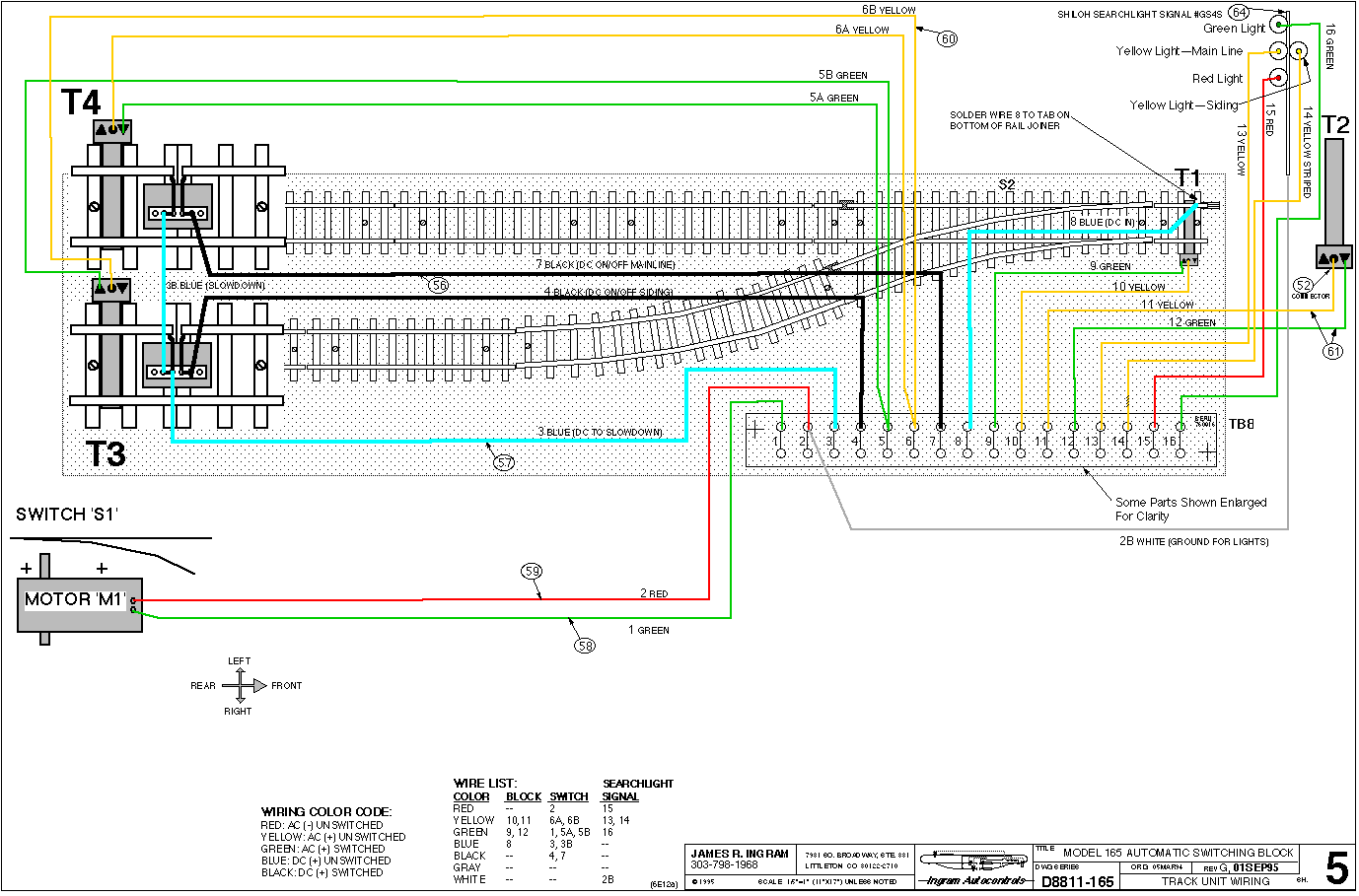

Drawing #5 - Track Wiring

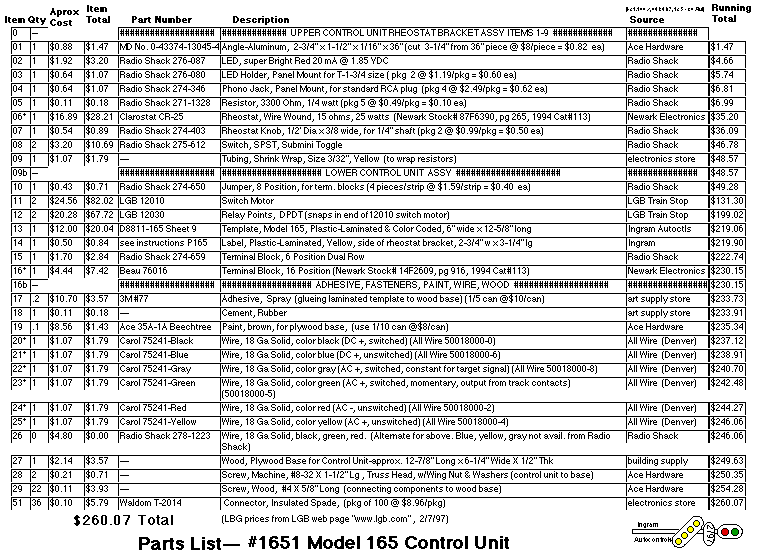

Drawing #7 - Parts List for Control Unit

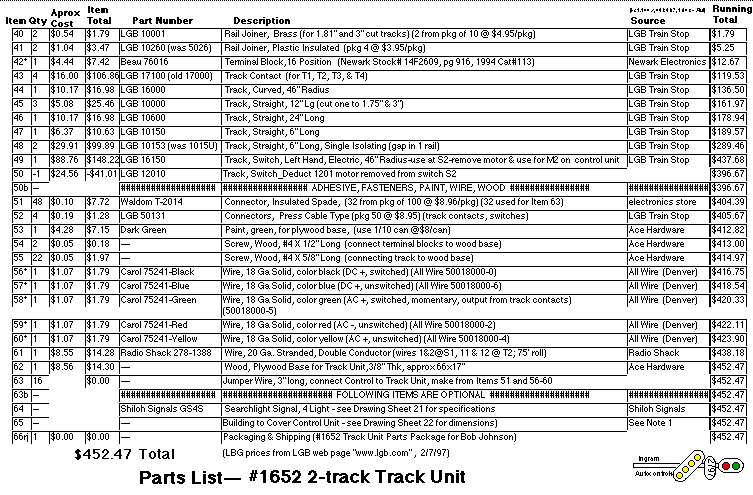

Drawing #8 - Parts List for Track Unit

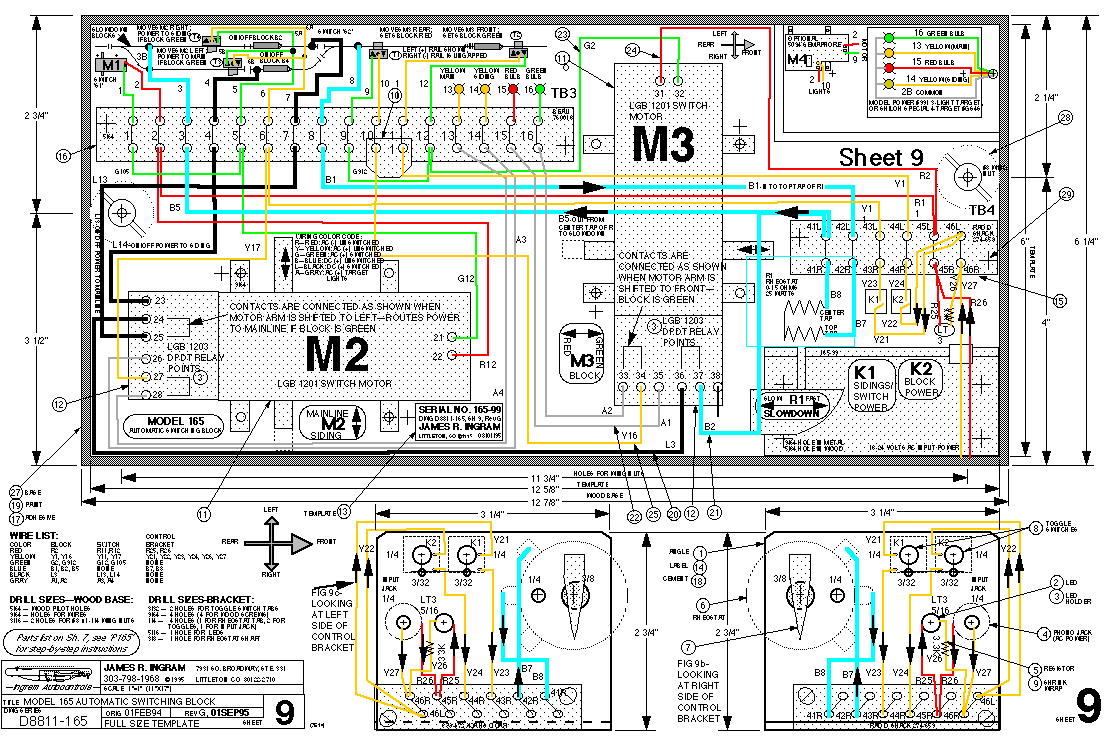

Drawing #9 - Template For Control Unit

This drawing is colored, and plastic-laminated, so you can cut it out, glue it to a wood base,
and attach all the parts and wires directly on top of their outlines.

It is colored, and plastic-laminated, so you can cut it out,
glue it to a wood base, and attach all the parts and wires.

Photo of #1651 Two-Track Control Unit).

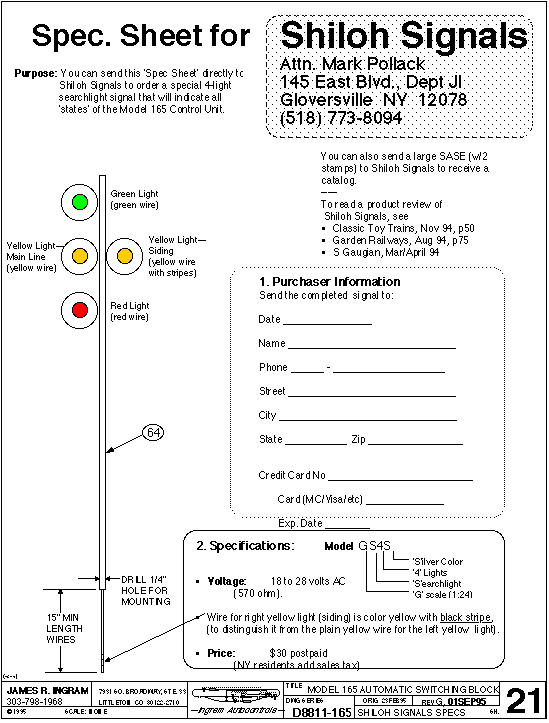

Drawing #21 - Signal Light
