Drawings shown below on this page: Drawing #12 - Schematic Drawing #13 - Test Wiring Drawing #14 - Track Preparation Drawing #15 - Cable Connections (if control located remotely) Drawing #16 - Initial Conditions Drawing #21 - Signal Light Drawing #22 - Enclosure   What This Section Shows You This section shows you all the "operating" drawings, plus some other reference drawings. The previous Section B2 shows you just the KEY drawings. The previous Section B3 shows you all the "contruction" drawings.

Drawing #12 - Schematic

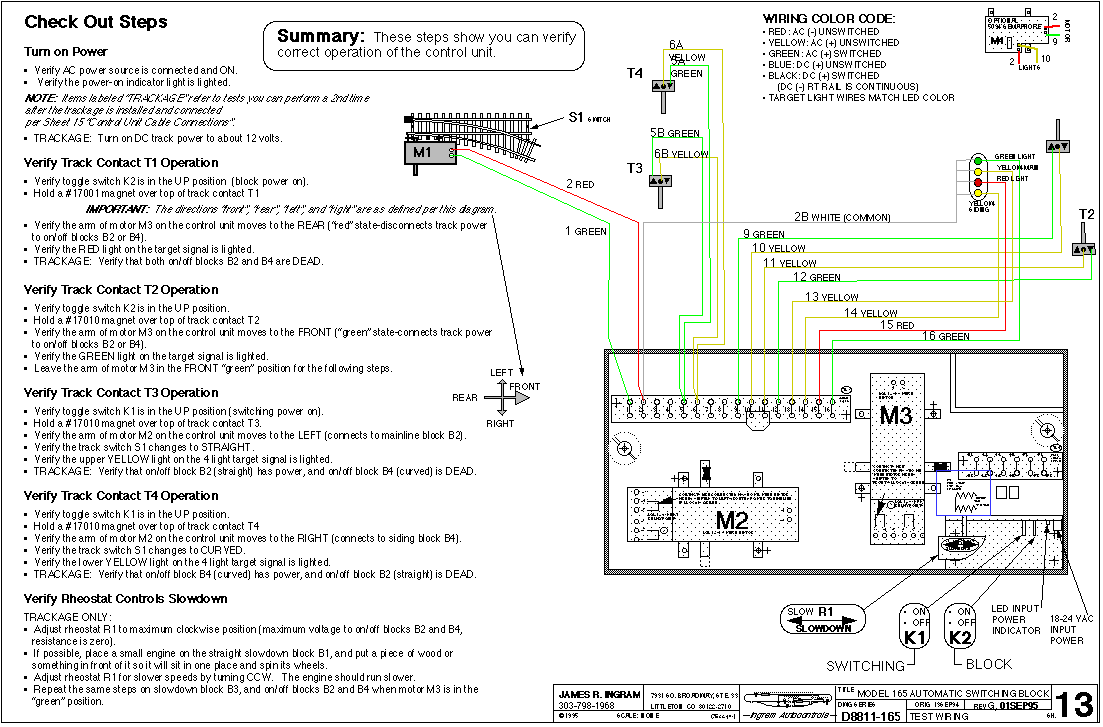

Drawing #13 - Test Wiring

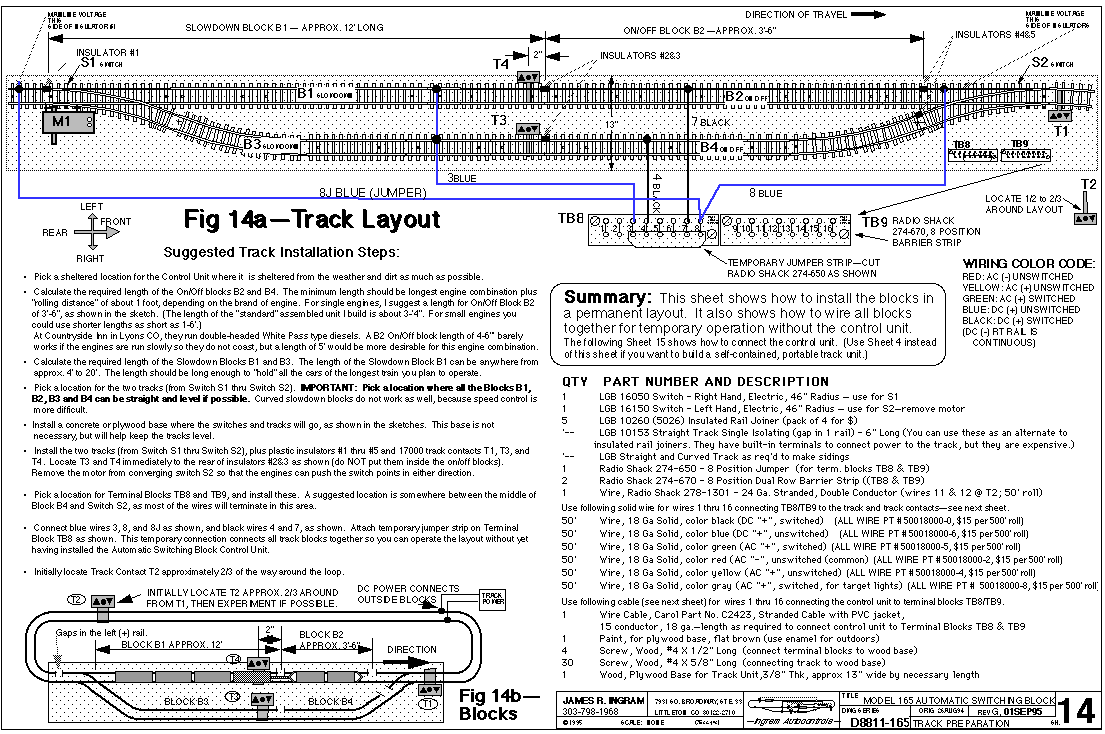

Drawing #14 - Track Preparation

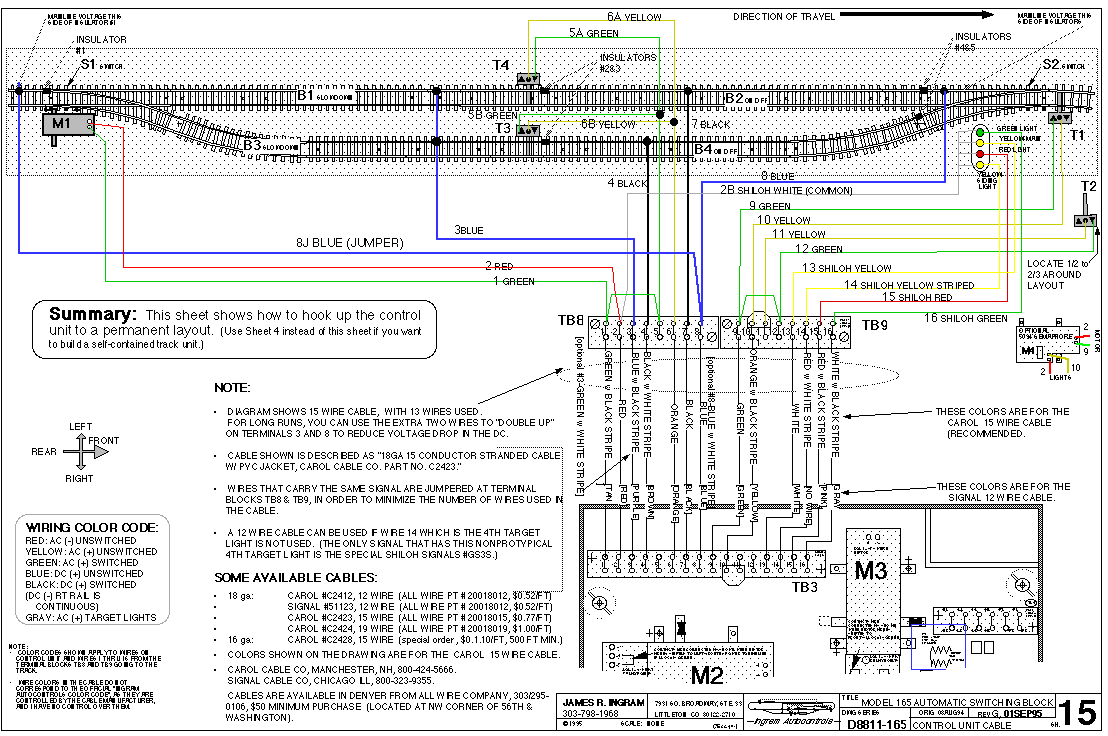

Drawing #15 - Cable Connections

Use this drawing when you want to mount the control unit AWAY from the track unit.

Drawing #16 - Initial Conditions

Drawing #21 - Signal Light

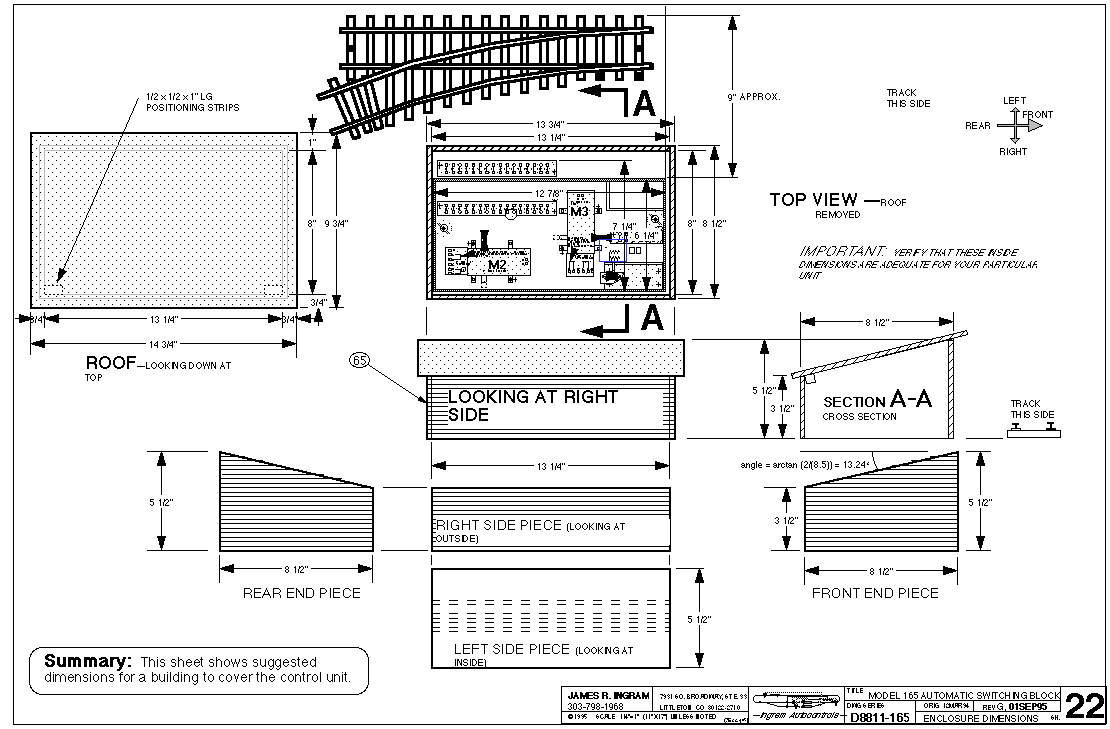

Drawing #22 - Enclosure
