Page E, Construction Drawings

Model 206, 2-Track Yard

*m*e*n*u | 206

* Model 206 * Video #655 A Introduction B Overview C Const Photos1 D Const Photos2 E Dwgs-Const F Dwgs-Operate G About PDFs new Yr 2020 Google Drive Album * PDF Directory Similar dwgs in previous Model 205 pages (20F17)

*G *m*e*n*u-09i | Plans-IAC

* G Plans * 1 AutoControls Home 6 Plans Index 7 Museum (Previous Plans ) 8 Special Parts 10 List of Videos ~~~~~~ 1-trk (Mdl 106) 2=trk (Mdl 206) 4-trk (Mdl 402) (20F17.)
7 Museum
(Previous Plans ): 8 Special Parts
10 List of Videos

Drawings below on this page

Sheet #4 - Track Unit Dimensions [below]
Sheet #5 - Track Unit Wiring [below]
Sheet #7 - Parts List, Control Unit [below]
Sheet #8 - Parts List, Track Unit [below]
Sheet #9 - Template For Control Unit [below] - the main drawing

The Drawings On This Page

This page shows GIF images of the drawings for the "template" Sheet 9 -- the key drawing -- and also Sheets 4 & 5 for layout and wiring of the track unit, and Sheets 7 & 8 Parts Lists.

The Other Drawings

For there are additional drawings for the previous and almost identical Model 205 (aka Model 165) yard, which can be viewed by using the links in the left menu bar for Pages E3 through E5. I suggest you browse these drawings.

Printing

Use the PDF versions for printing. You can access the PDF directory via Page B6.

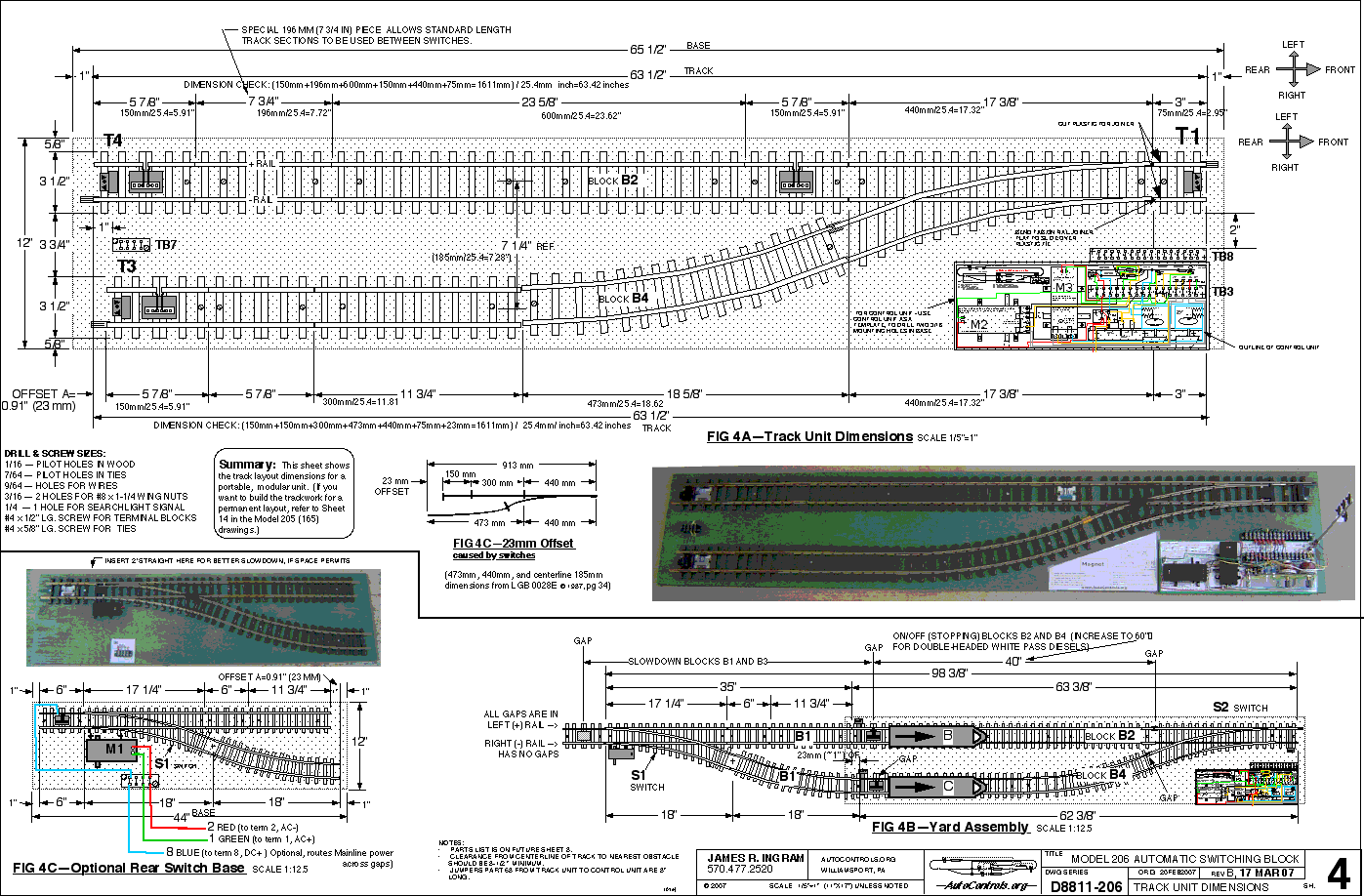

Sheet 4 - Track Unit Dimensions

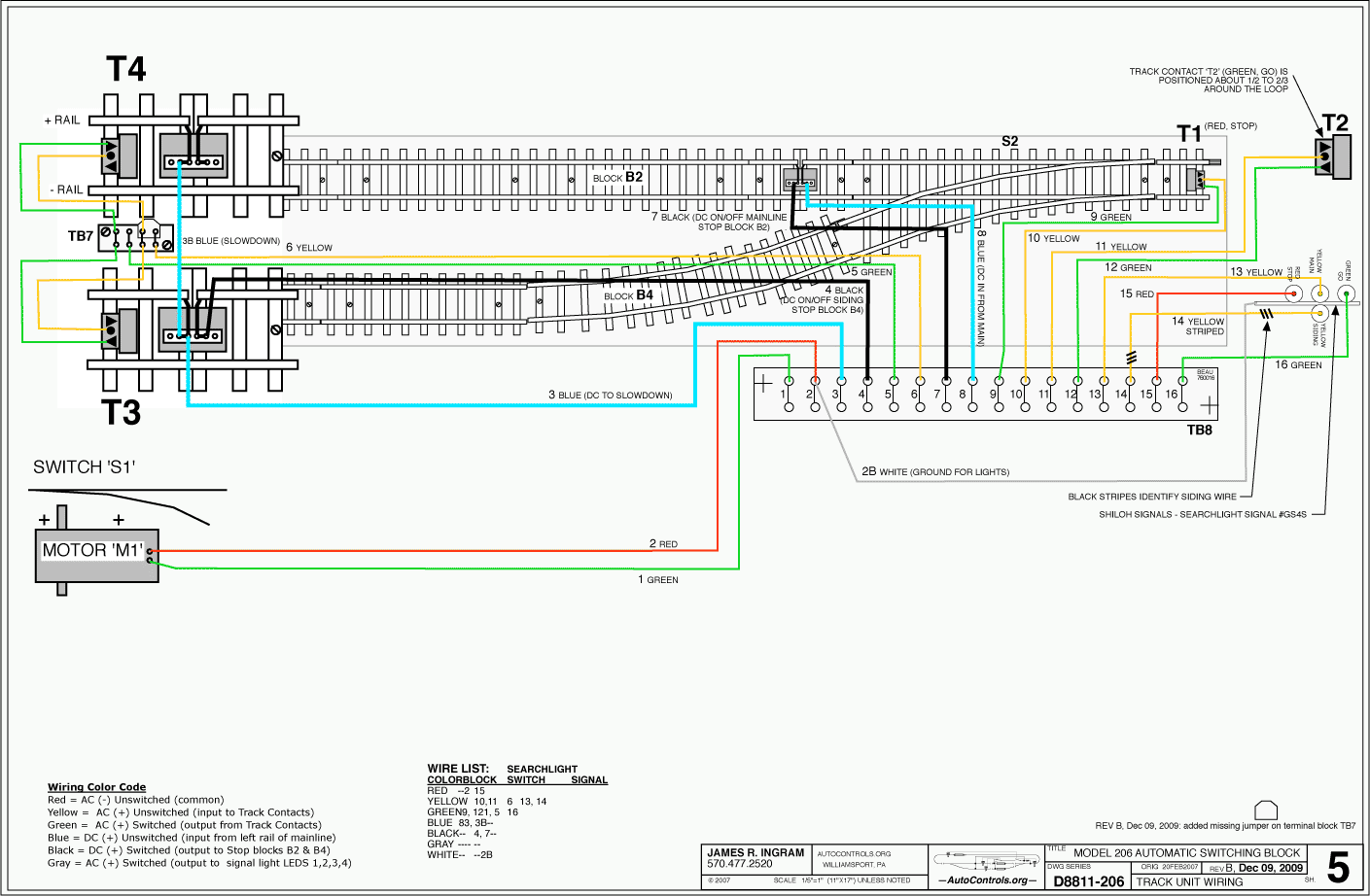

Sheet 5 - Track Unit Wiring

12/9/2009: Added missing mumper at TB7

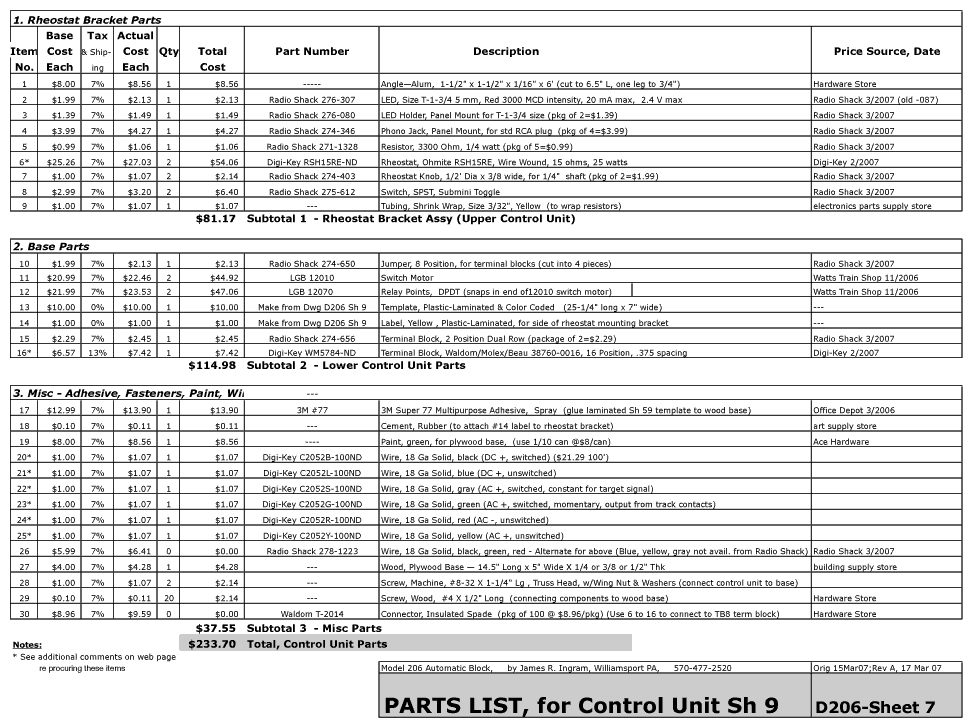

Sheet 7 - Control Unit Parts List

Reminder: Use the PDF drawings in the PDF directory for printing, not these GIF images.

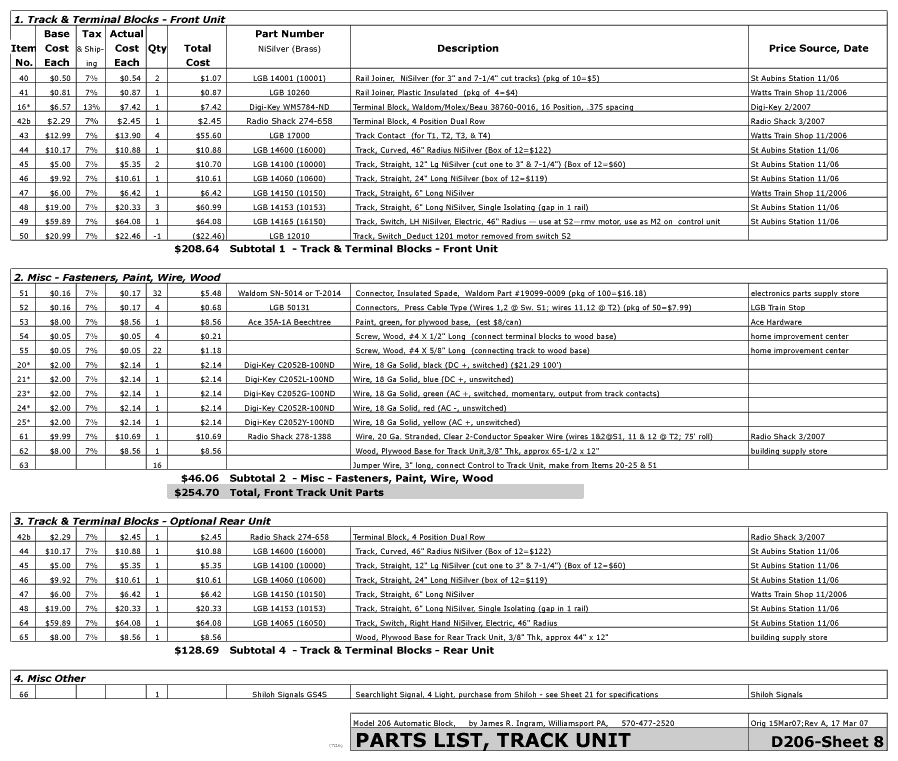

Sheet 8 - Track Unit Parts List

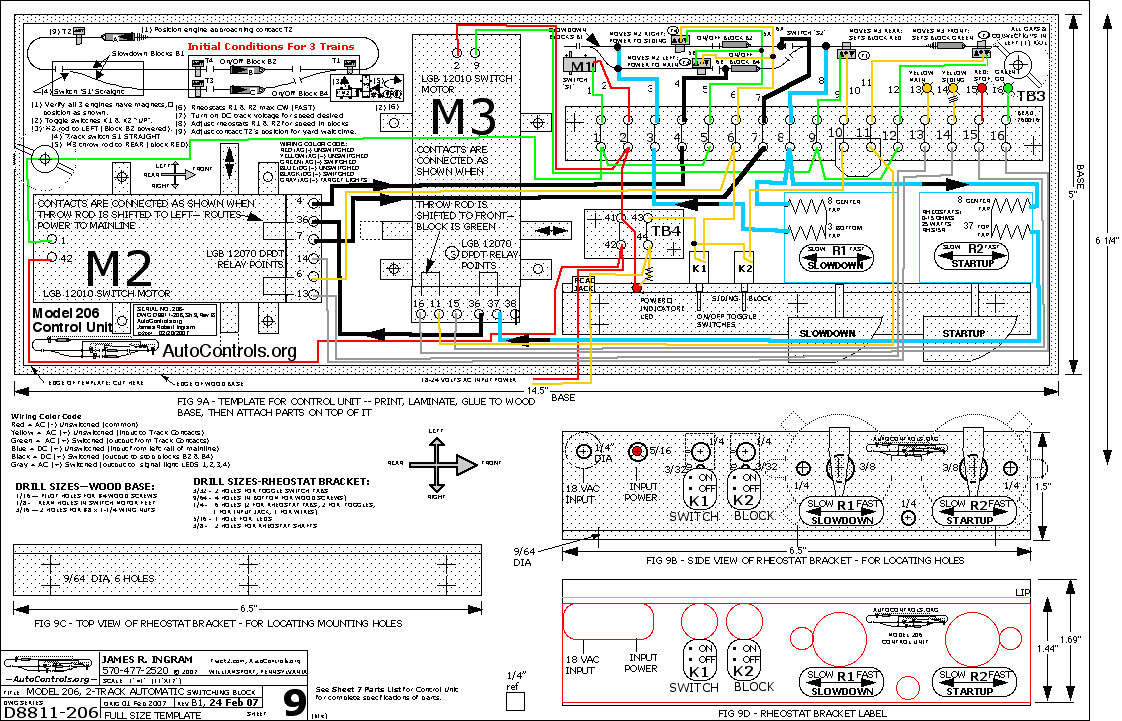

Sheet 9 - Control Unit Drawing

This page created 2/24/07, modified 12/9/2009 (20F17) (add missing jumper) by (bottom include)
